Azure Databricks Integration with QlikView

QlikView Desktop

  Note: This tutorial/ guide is for Windows Machines

First let’s collect Azure Databricks related configuration as follows:
- Select Cluster
  Azure Databricks → Clusters (select the cluster for compute and return results to QlikView)
- Get Configuration
  Configuration tab → Advanced Settings → JDBC/ODBC
- Gather following highlighted details
- Generate personal token in Azure Databricks with proper comment and Lifetime (0 for live indefinitely)
  User Settings → Generate New Token
- Copy this data to some file for further use
Download Simba ODBC Driver from the link Databricks-Simba-odbc-driver or alternatively get it from this git prerequisites/SimbaODBCDriver.zip
After extracting the downloaded file, we will have msi installer file as follows:
Install the driver, by choosing appropriate options
Navigate to setup Azure Databricks data source in the system as follows:
Control Panel → View by (Large Icons) at top right corner → Administrative Tools
Click Add in User DSN/ System DSN, based on your needs.

Make sure to select/ update with following configuration

Parameter/ Setting	Value
Data Source Name	as required
Description	optional
Spark Server Type	SparkThriftServer
Service Discovery Mode	No Service Discovery
Host	`HOST_FROM_DATABRICKS_CLUSTER`
Port	`PORT_FROM_DATABRICKS_CLUSTER` (default value: 443)
Database	default is sufficient for this integration
Authentication	User Name and Password
User Name	token
Password	`PERSONAL_ACCESS_TOKEN_GENERATED`
Thrift Transport	HTTP
SSL Options	Enable SSL (check this) & let it use default cacerts.pem
HTTP Options	`HTTP_PATH_FROM_DATABRICKS_CLUSTER`

Test Connection (this starts the cluster if it’s in terminated state and wait for the respone from cluster to the DSN ODBC driver Setup)

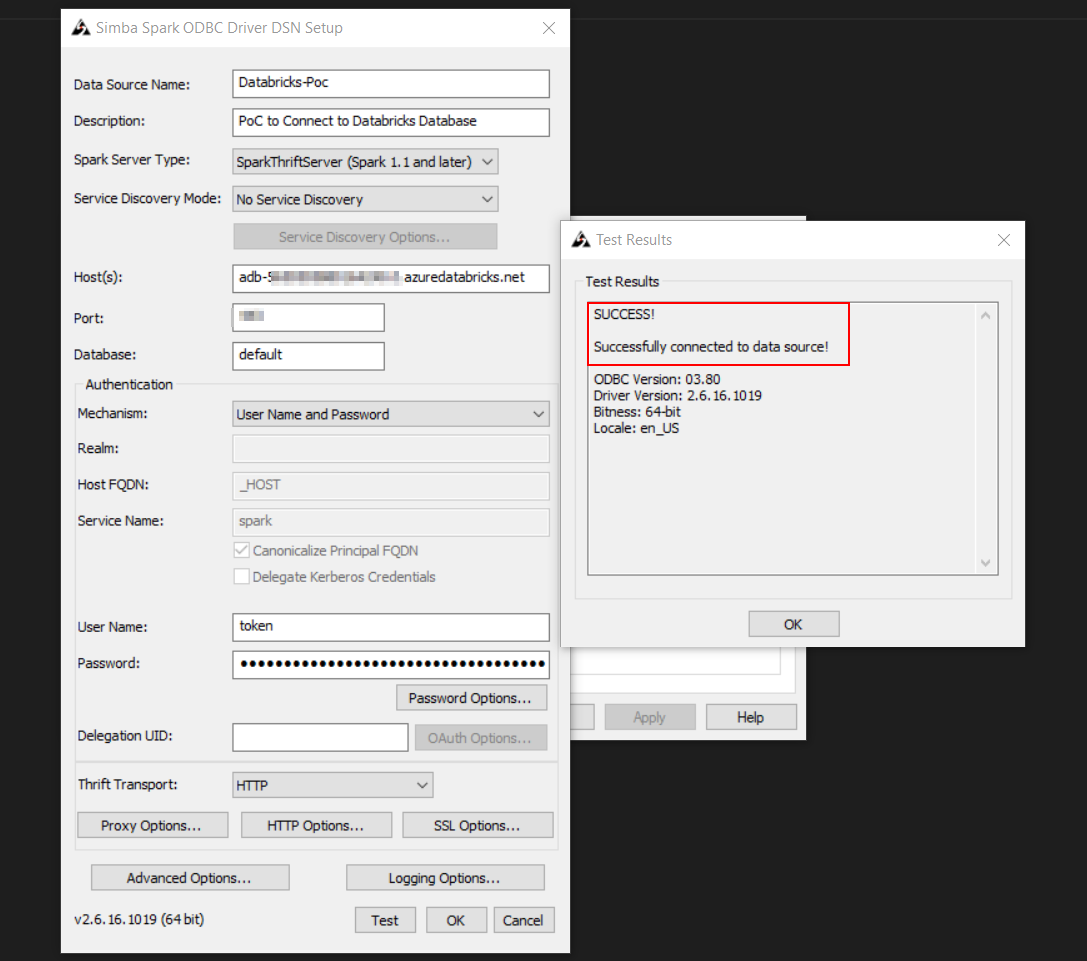

- Result from DSN Setup
- Spark UI/ Session details
Open QlikView and Edit Script (Ctrl+E)

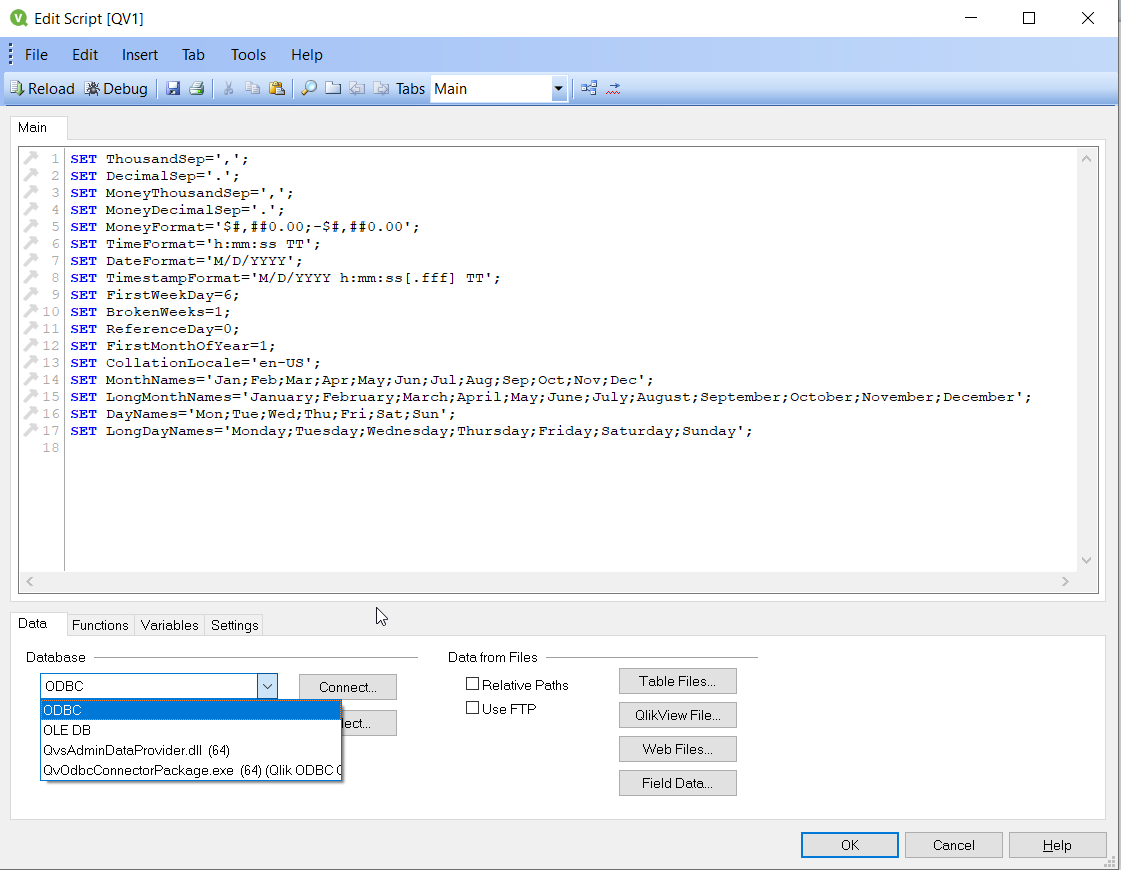

Select ODBC Driver as follows:

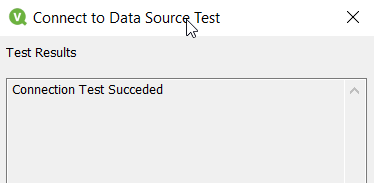

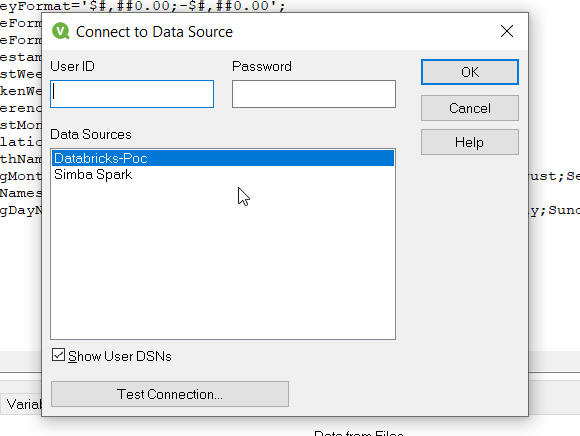

Click connect and check Show USER DSNs (if you have setup USER DSN rather than System DSN) → Select Data Source name we have created → Click OK (if required, you can test connection)

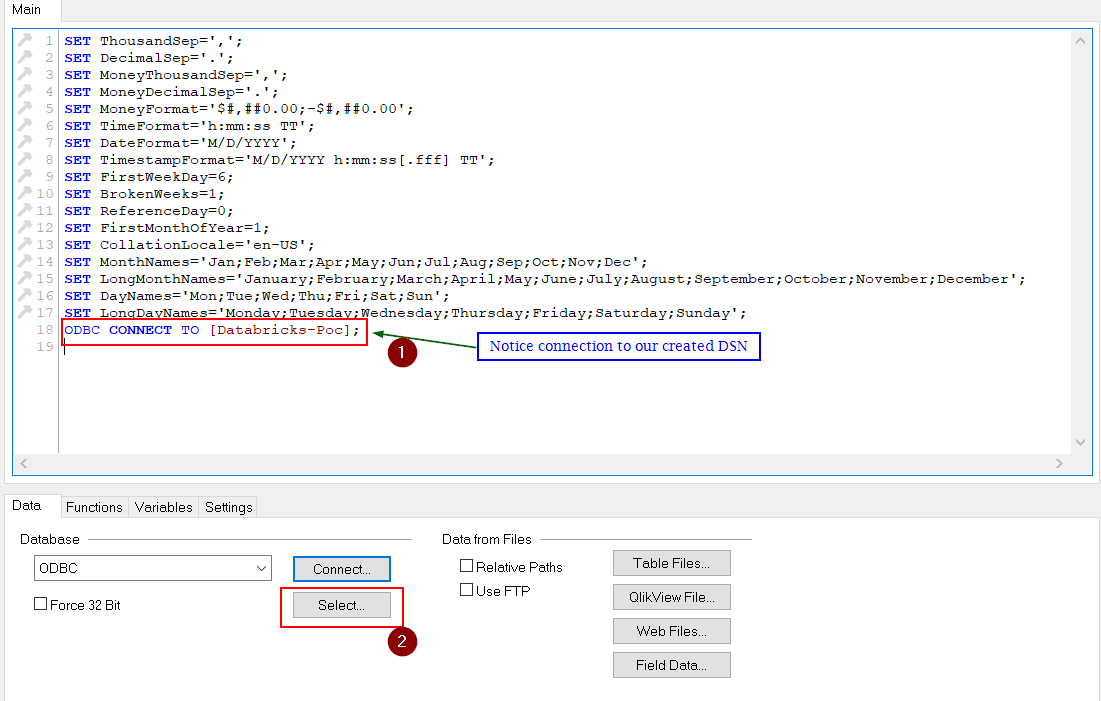

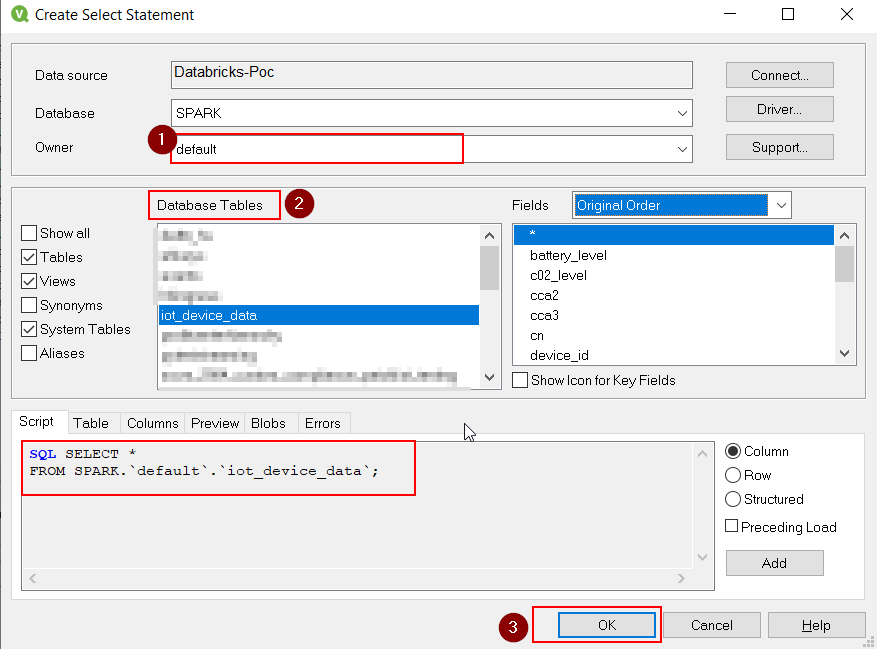

Click Select to select the database and tables to be loaded into QlikView reports as follows:
Click Reload once we have the SQL statement append to the file, this queries and loads data from databricks database to the qvw table object
Following is the data, when displayed using
Object → New Sheet Object → Table Box
